Self Cleaning Filters

Self Cleaning FiltersOrival Water Filters

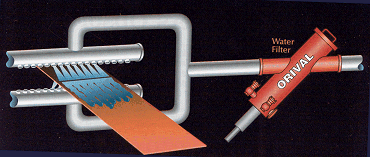

  • Spray nozzle protection
  • Gland Seal Protection
  • Cooling water
  • Potable Water
  • Never use strainer again!
  • No maintenance required

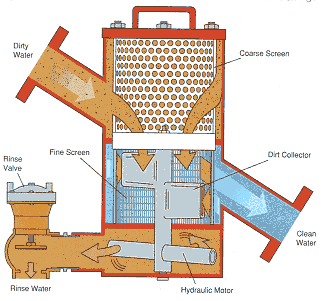

Self CleaningMaintenance Free Line Pressure Powered Filtration System

  • Course and Fine Screening
  • Self Clean activates Automatically at 7 psi drop
  • Rinse Cycle takes only seconds
  • and does not interrupt water flow.
  • No external power required

Standard Features

  • Line pressure powered, no external power required.
  • PLC, electrical and battery operated controls.
  • Automatic self cleaning with no loss of flow.
  • Single units, with 2″ to 16″ flanges which handle flowrates of 10-15,000 gpm.
  • Pressures to 150 psi; Temperatures to 150° F; 30 psi minimum inlet pressure.
  • Flat stainless steel screens down to 50 micron.
  • Units with automatic built-in relief bypass.
  • Operate in any position, even upside down.

Very high dirt load applications
Steel Spin Clean® Filters

  • From 2″ to 12″ nps
  • No Moving Parts
  • Spin Clean® action keeps the screen clean
  • For high dirt load applications
  • Laminated Stainless Steel Screen
  • No Backwashing down time
  • 150 psi flange rating
  • Includes pressure check device & air vent
